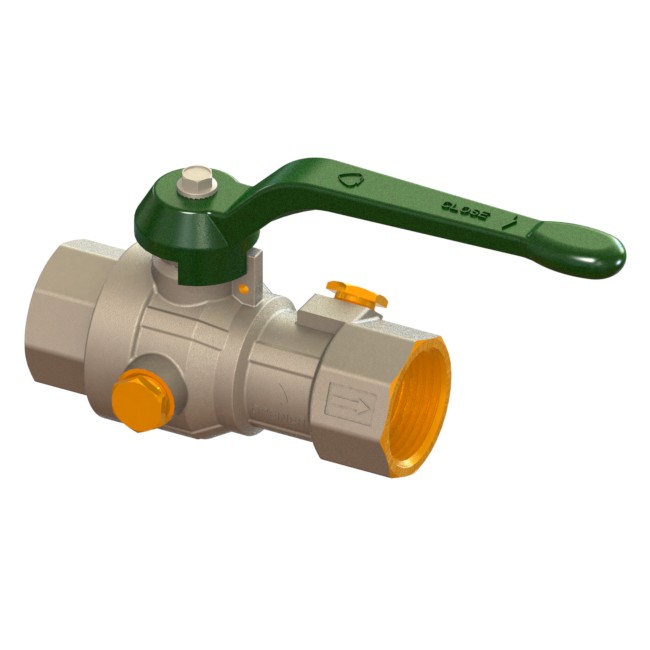

Water full-bore ball valve, standard series with in-line check valve and 2 drains with handle, FEMALE-FEMALE

Application WATER

VALVES
Ball valves with built-in check valve
Reduced

Code	Kg	Box	Master Box	M	L	L1	L2	A1	Combinazione	H1	ØH2	ØP	Lc	Ch1	Ch2	PN-MOP	Kv	NA	NA	PCP	NA
65180700050	0,3	0,3	80	100	77,5	15	18	Rp1/2	F-F	49	32	15	28	ott.25	ott.25	PN25	4,7	0	0	G1/4	F generica
65180700075	0,45	0,45	50	100	95	19,1	0	Rp3/4	F-F	52,5	40	20	59	ott.32	0	PN25	8,2	24,2	54,2	G1/4	F generica
65180700100	0,76	0,76	36	130	110	21,4	0	Rp1	F-F	67,5	50	25	67,5	ott.38.5	0	PN25	11,8	25,8	60,8	G1/4	F generica
65180700125	1,14	1,14	24	130	129	24,9	0	Rp1.1/4	F-F	73	60	32	80	ott.48	0	PN25	20,3	30	70	G1/4	F generica
